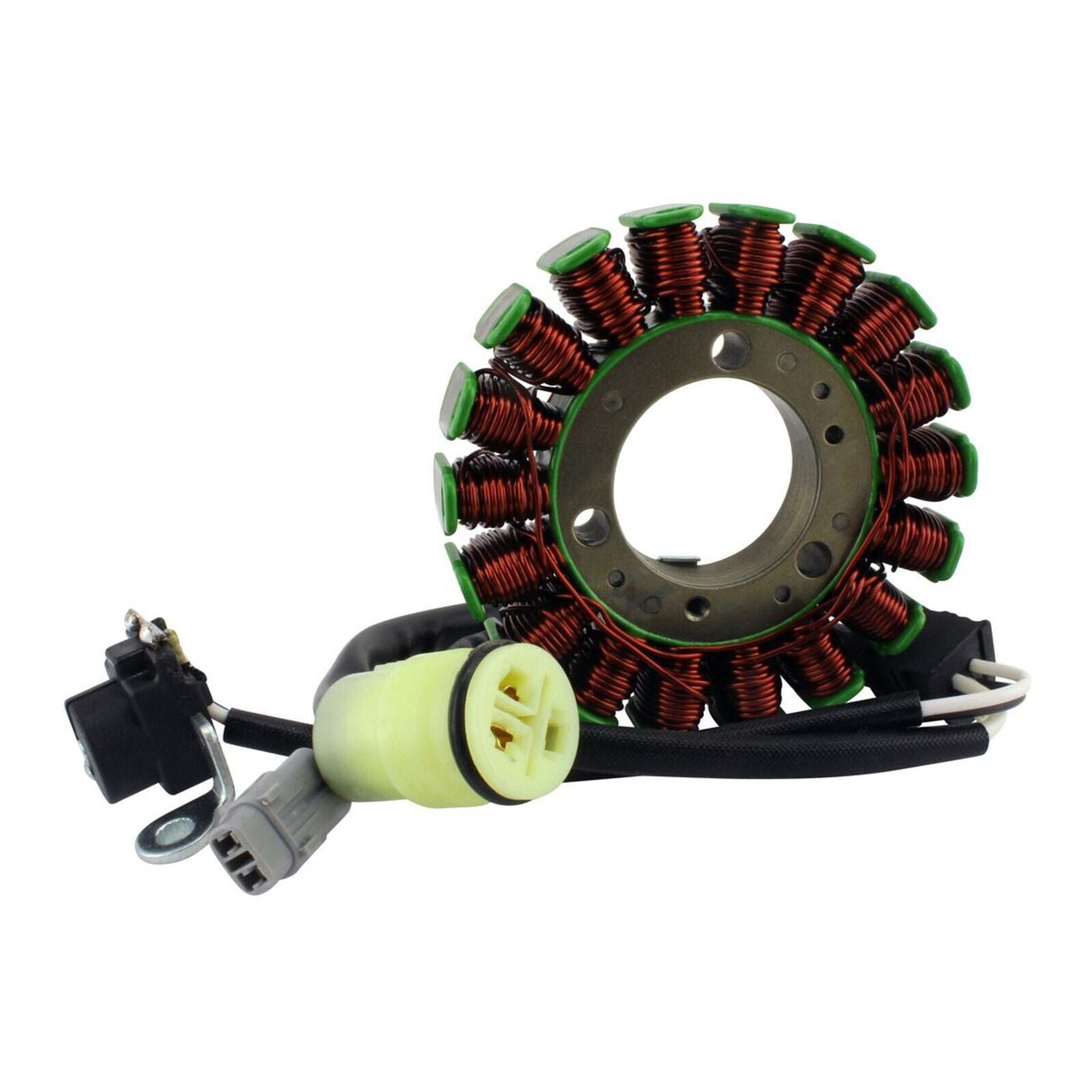

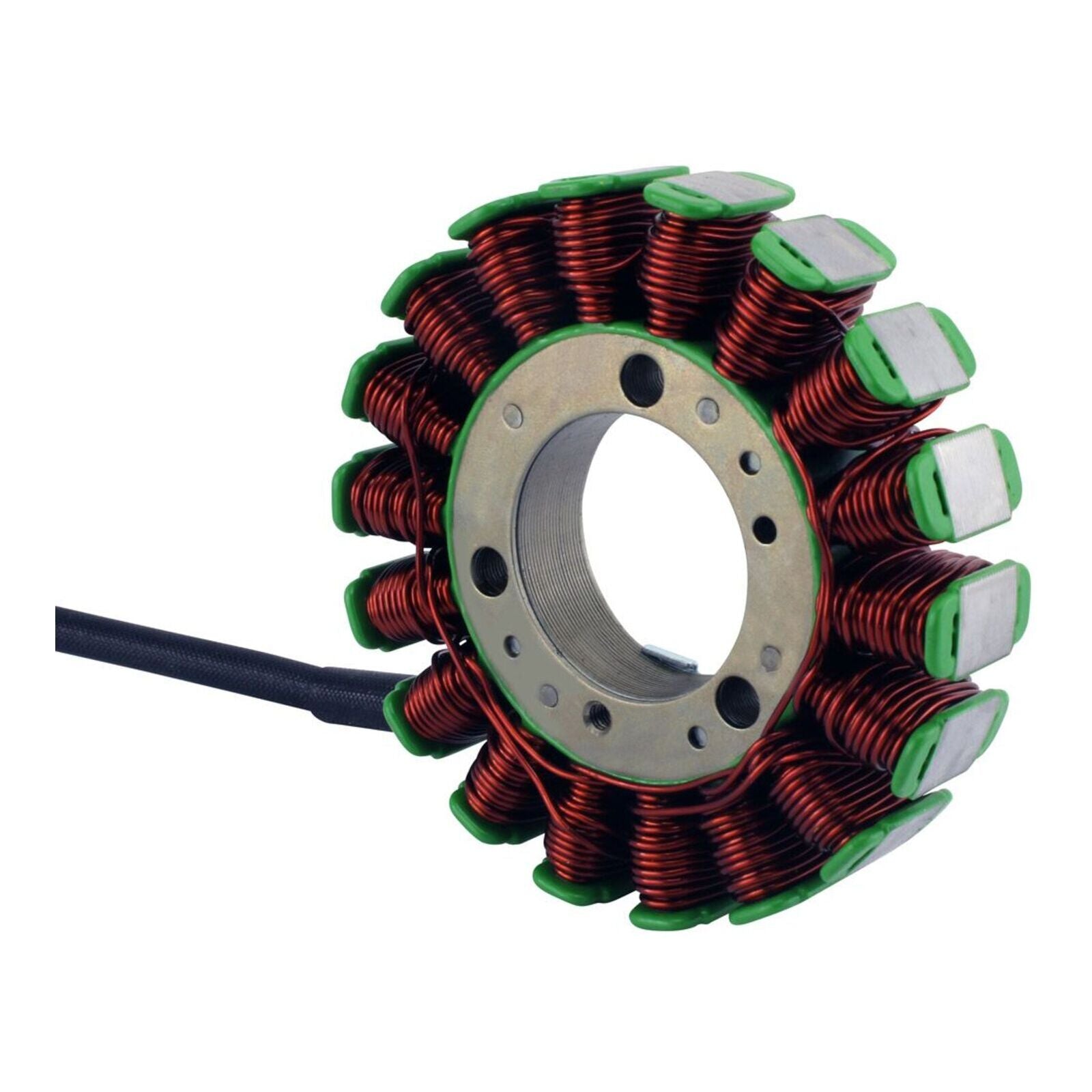

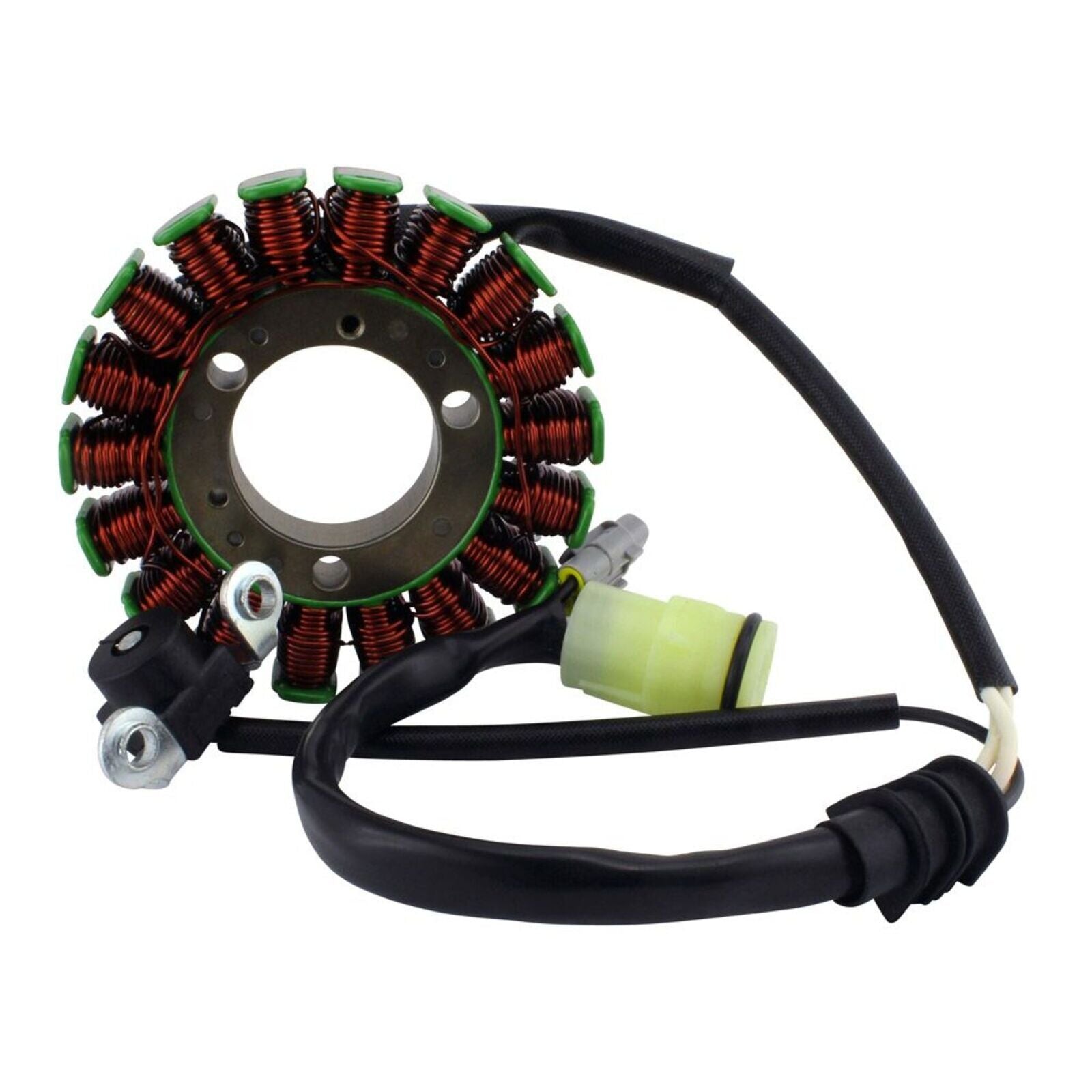

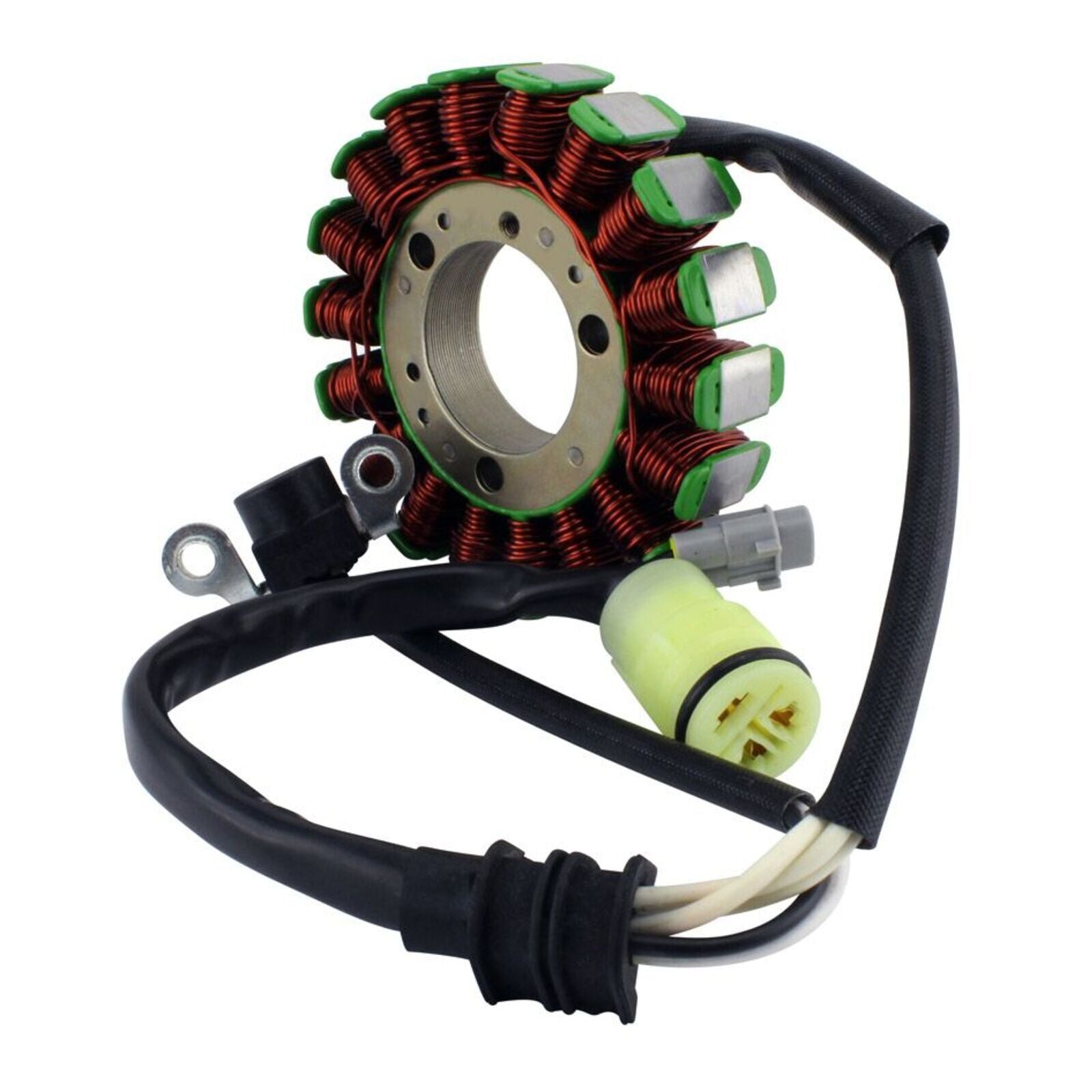

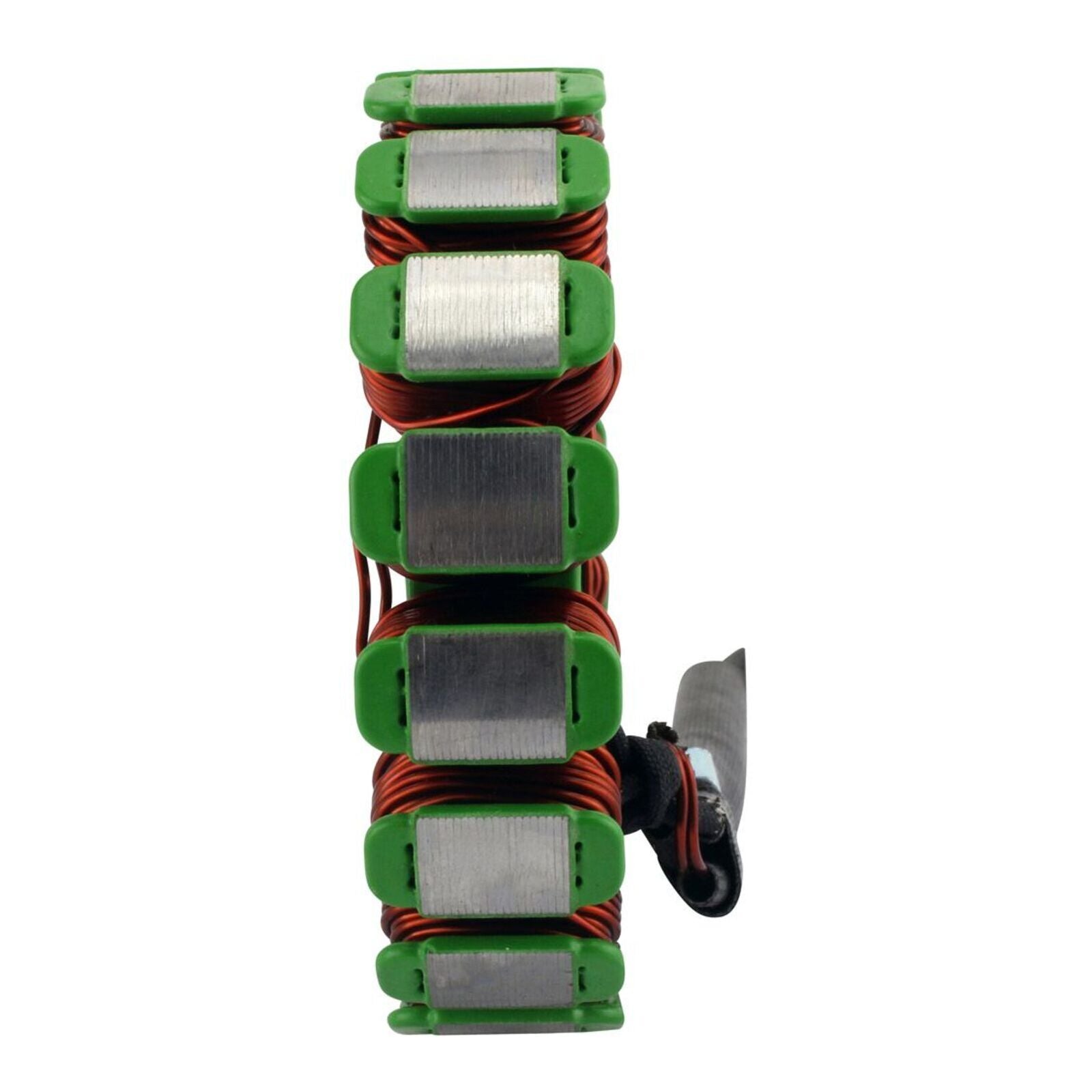

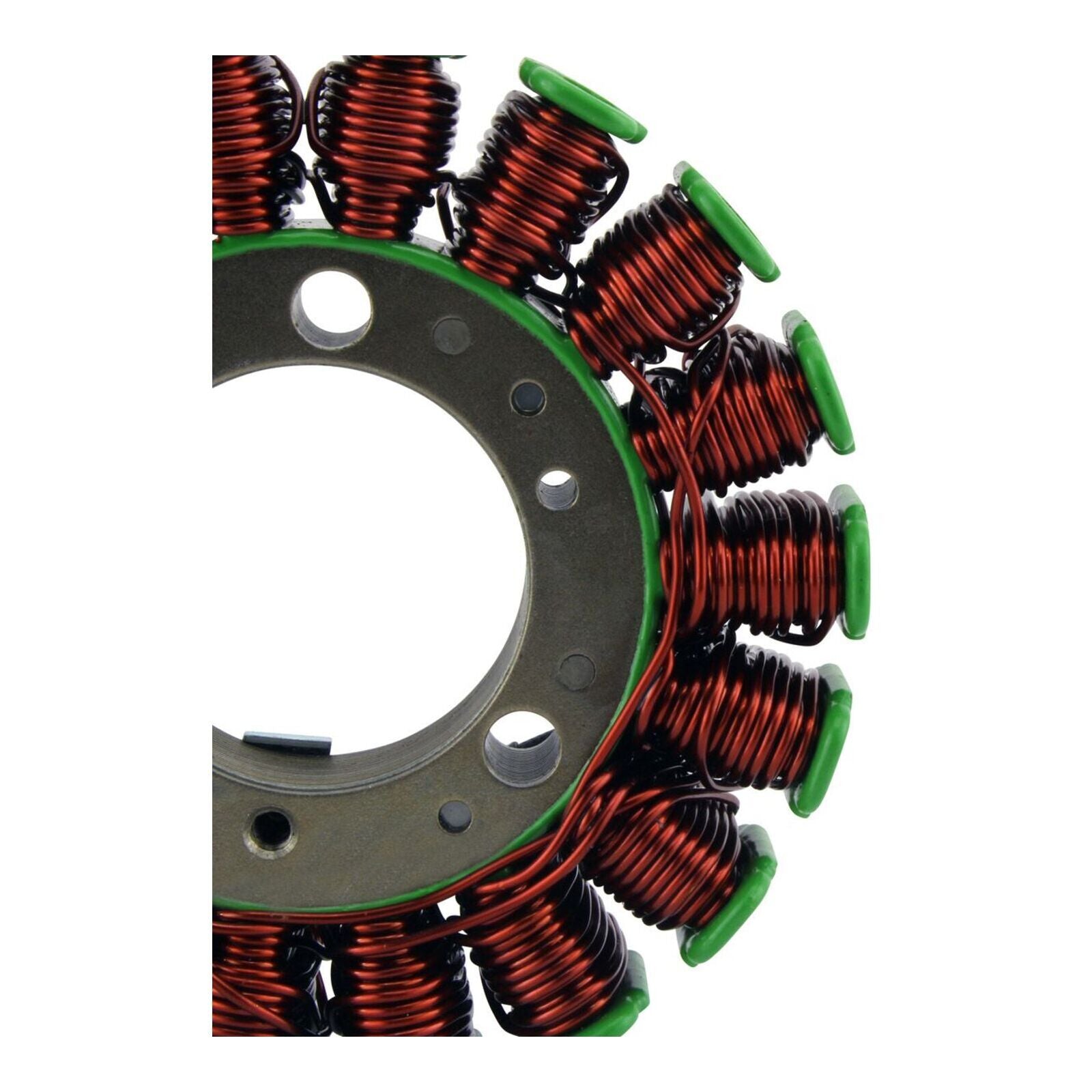

300W High Output RM Stator Yamaha YFZ450R/X '09-'24 (RMS010-107948)

SKU: RMS010107948

Warehouse - In Stock

,

$404.79

~~$439.99~~ $404.79

Sale Sold out

Tax included. Shipping calculated at checkout.

Product variants

Quantity

Direct replacement to your original unit
Plug-and-play, direct fit, easy installation
Highest grade of lamination materials
Highest grade of copper winding, resistant to 200 degrees Celsius

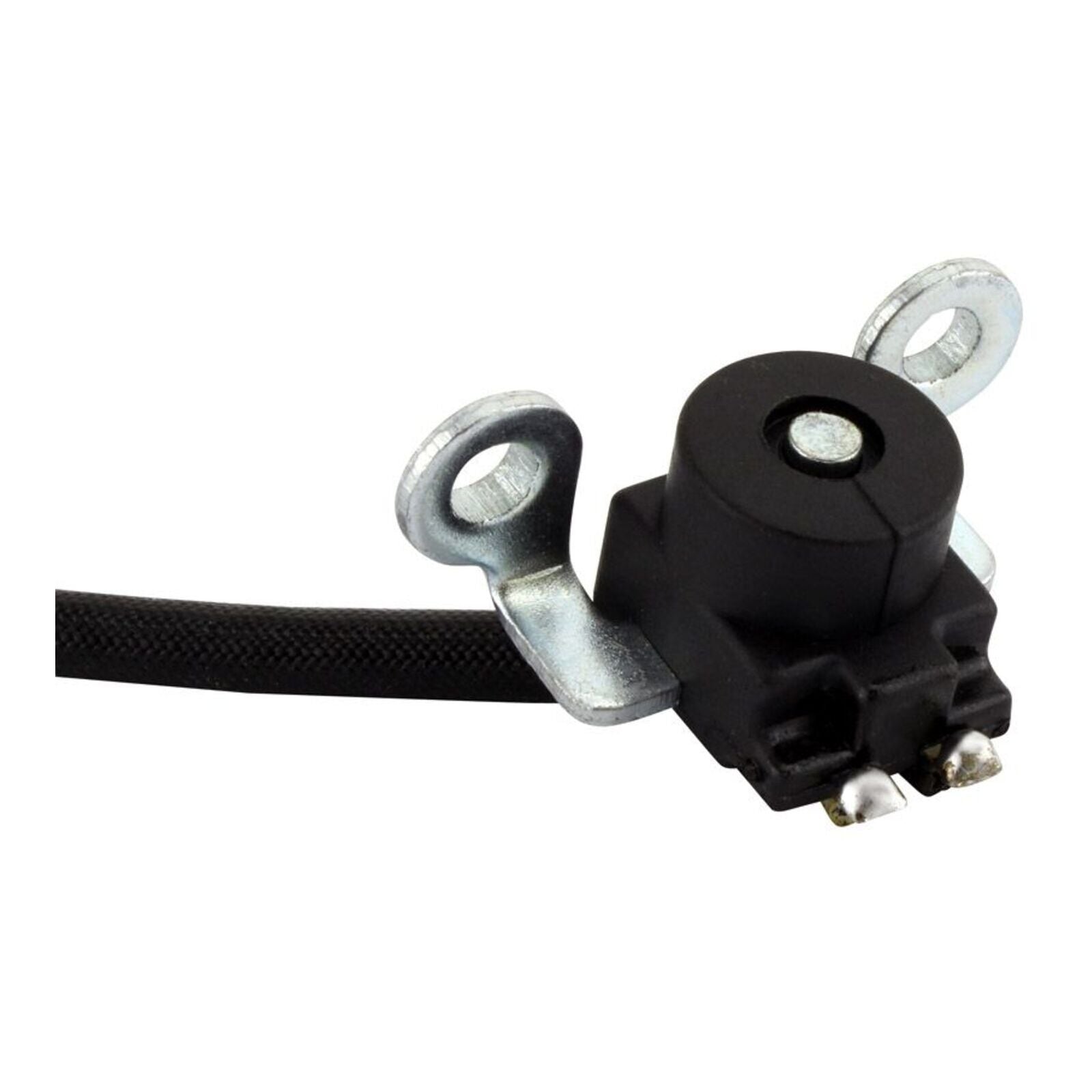

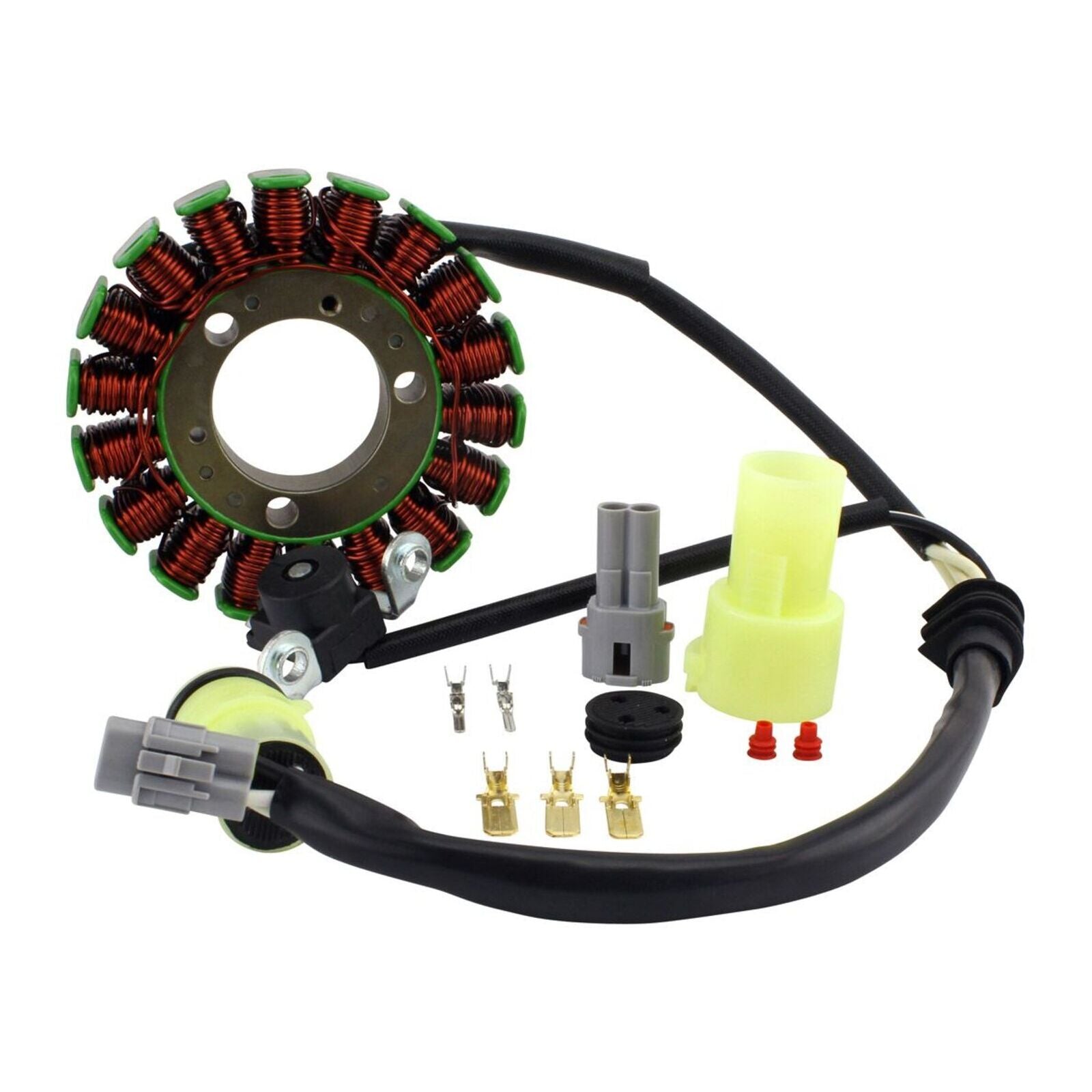

Pick up pulsar coil included

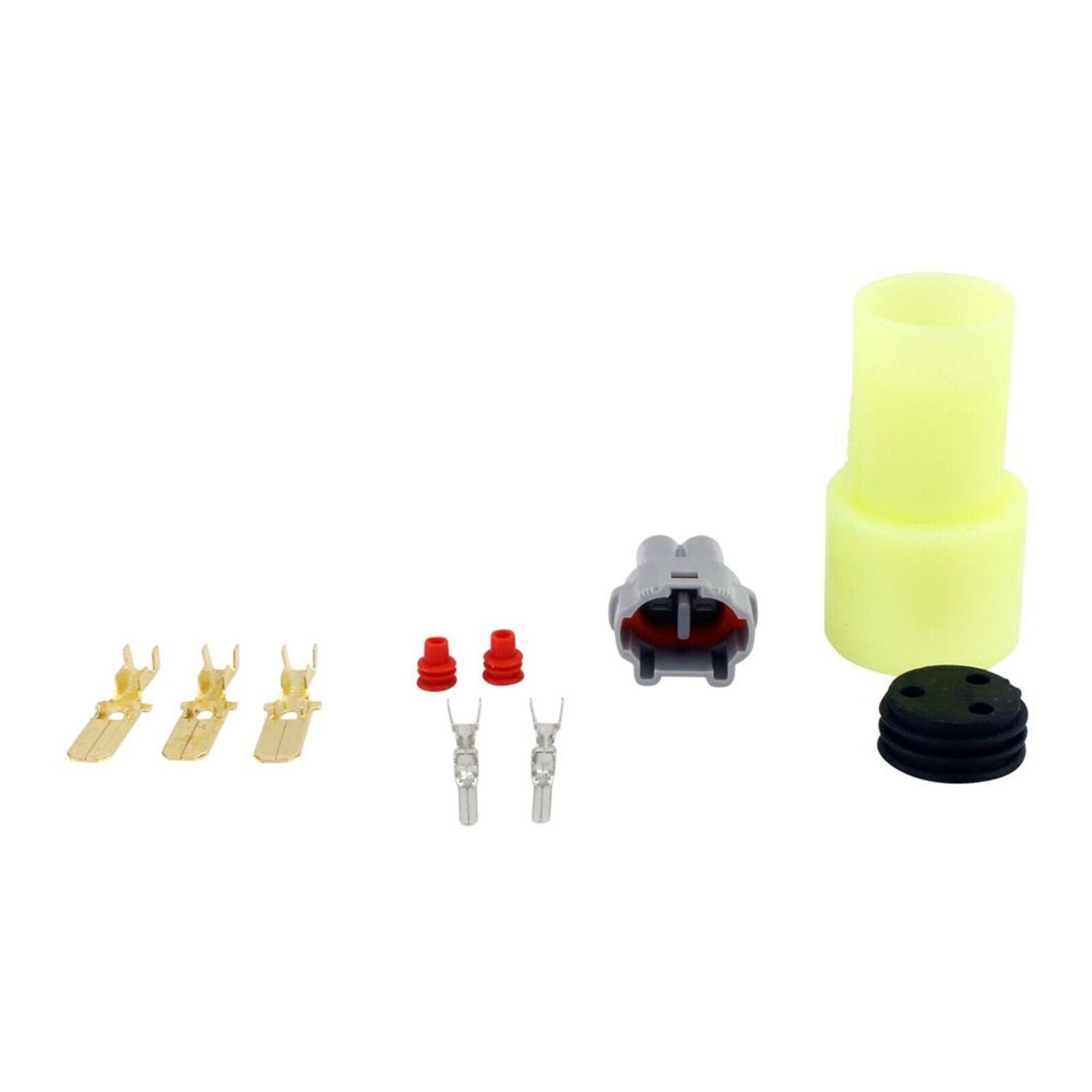

Connectors included

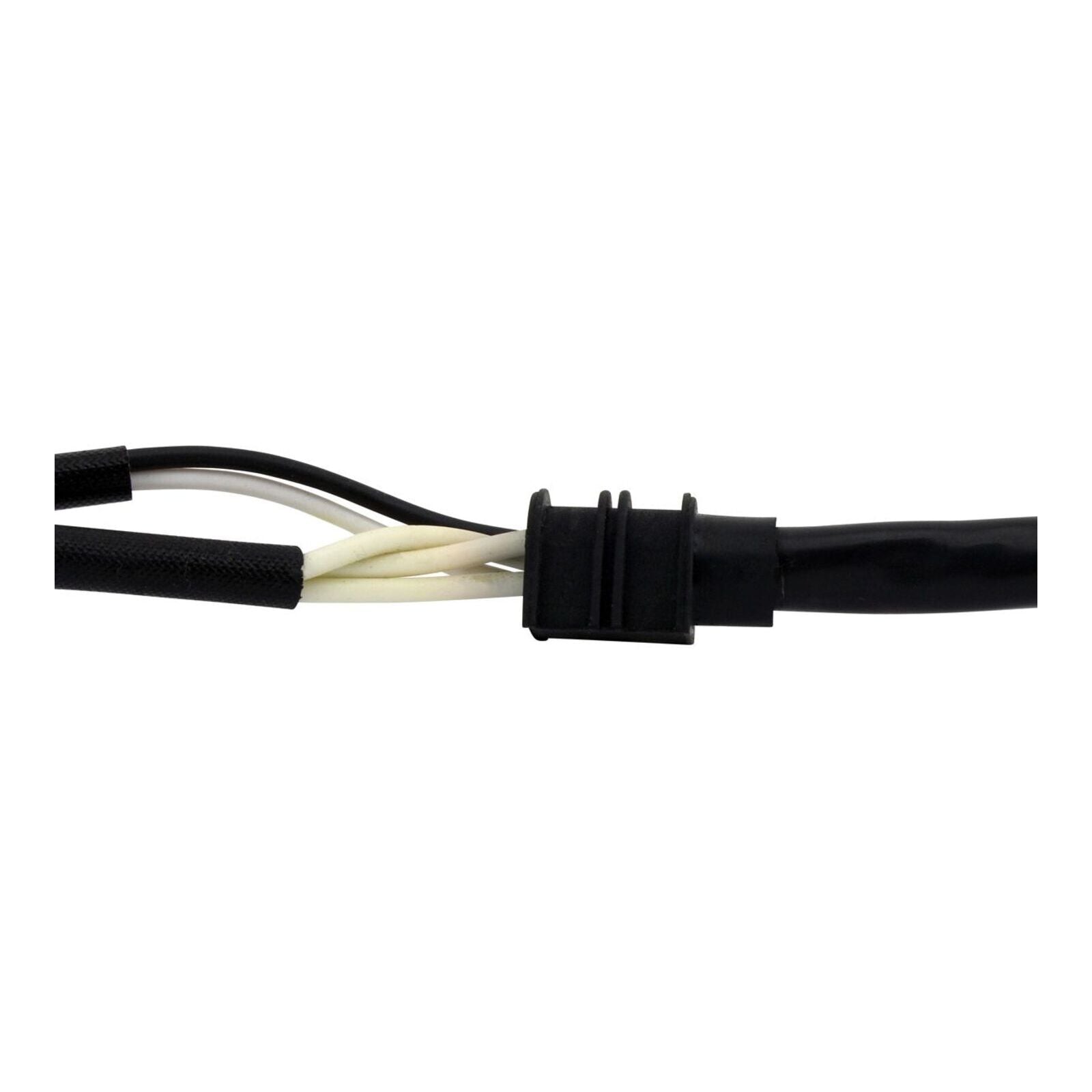

Rubber grommet included
All products shipped are tested

This stator output 300W (vs OEM 208W) to give you extra power to install accessories and lighting.

20% MORE OUTPUT OVER STOCK, WORKS WITH ALL OTHER OEM COMPONENTS.

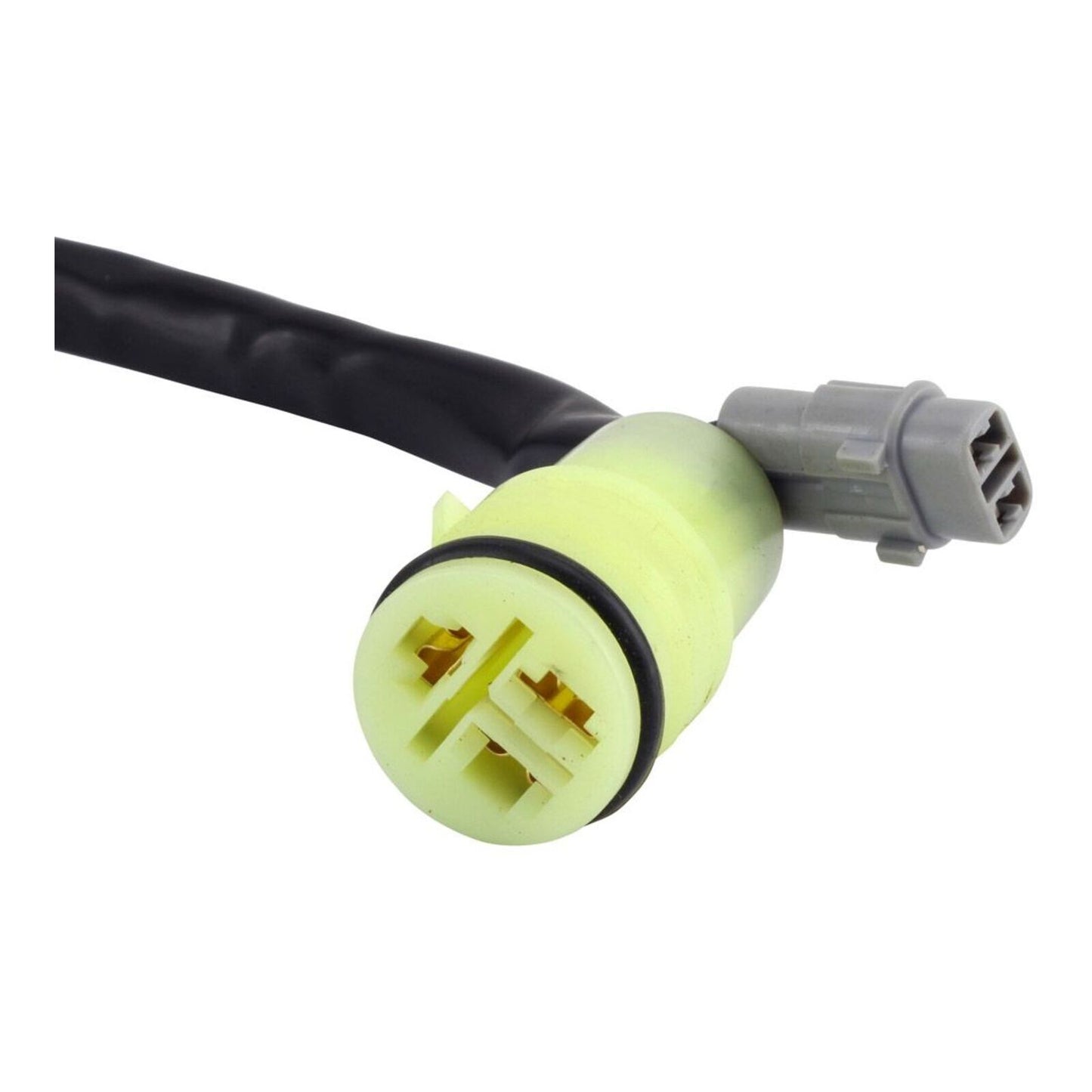

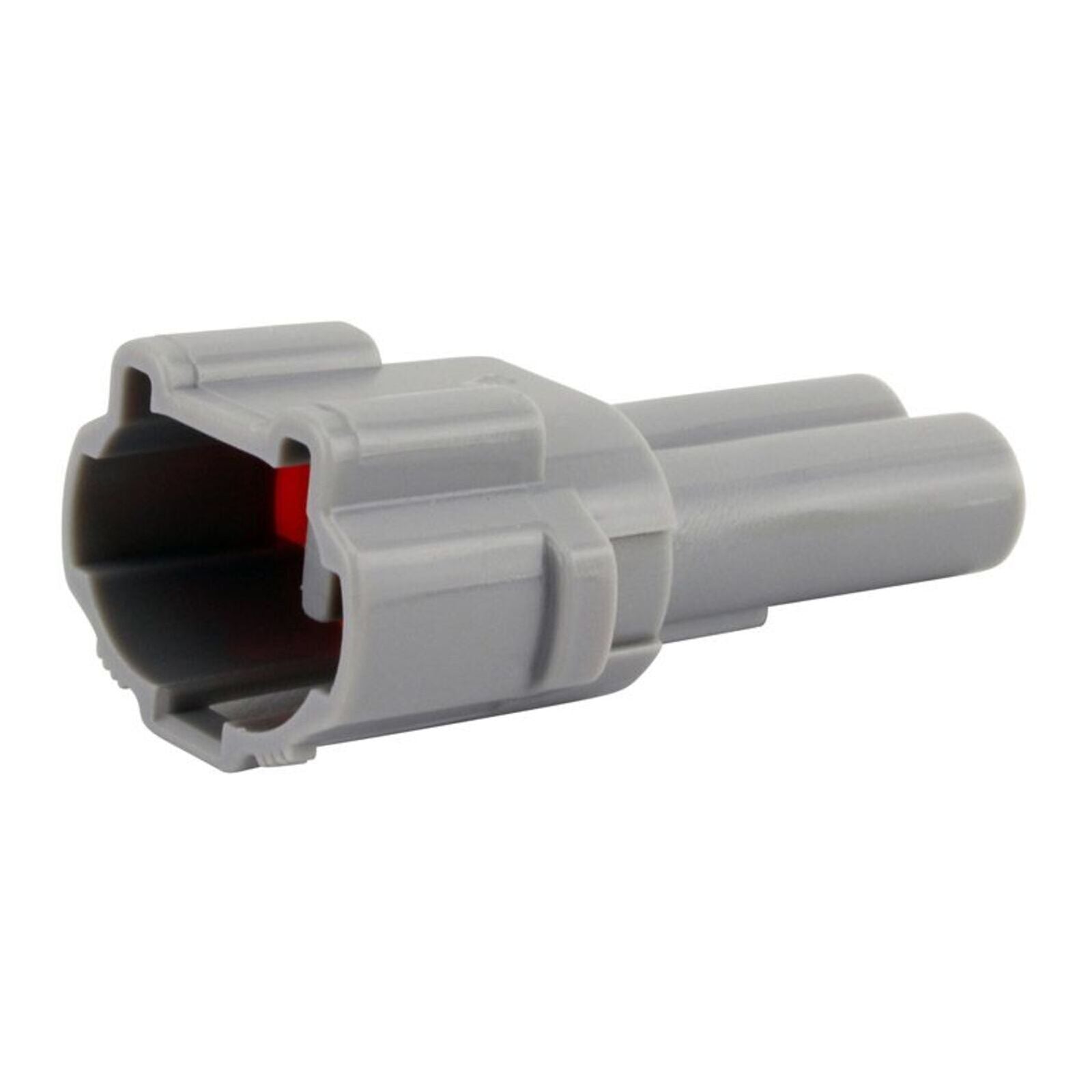

RM Stators has even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause of repetitive electrical issues.

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Dimensions:

Interior diameter: 37 mm
Exterior diameter: 97 mm
Thickness: 14 mm
Length of wires stator to grommet: 160 mm
Length of wires grommet to plug: 180 mm
Length of pickup coil's wire to grommet: 180 mm

Other specifications:

Number of wires: 5
Number of plugs: 2
Number of pins: 5
Number of poles: 18
Wire to wire resistance:
- Alternator: White to White = 0.2 ohms +-20%
- Pickup: White to Black = 260 ohms +-20%
